Vaellan Snow



Snow

Introducing the Vaellan Snow, our lighter winter vehicle equipped with a shorter track. Thanks to the track's length, the vehicle is agile and lightweight. The Snow is the ideal vehicle for those seeking an easy and reliable means of winter transportation.

Includes: SnowRollers (x 2), front frame, middle and seat frame, battery, short track, and motor.

Vaellan Snow+



Snow+

Introducing the Vaellan Snow+, our robust winter vehicle with a long track that ensures excellent performance in deep snow. Perfect for the most challenging winter terrains, the Snow+ offers exceptional stability and traction.

Includes: SnowRollers (x 2), front frame, middle and seat frame, battery, long track, and motor.

Vaellan Snow ja Snow+

Where Are They Used?



The Vaellan Snow and Snow+ are designed to perform and traverse in challenging winter conditions. The Vaellan Snow+ features a long track specifically engineered for deep snow. With its extremely low ground pressure, the Snow+ is built to stay on the snow's surface. The Vaellan Snow, on the other hand, is a smaller winter vehicle option that performs well in wetter winter conditions.



Vaellan's winter-specific models are elegantly simple and durable. All Vaellan vehicles are easy to disassemble, making them convenient to transport in a car trunk.

PARTS

Snow

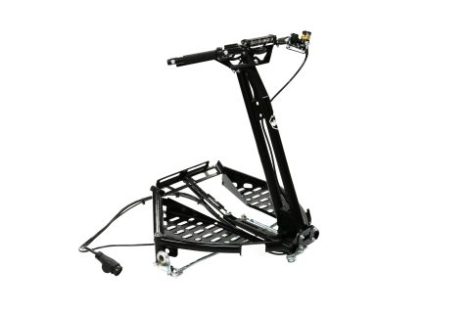

Front frame

201629

Front frame

Mid frame

201893

Mid frame and seat frame

201820

SnowRollers

200870

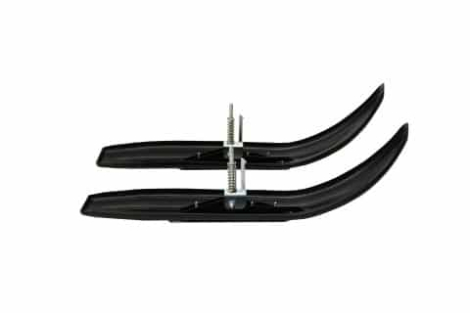

Skis

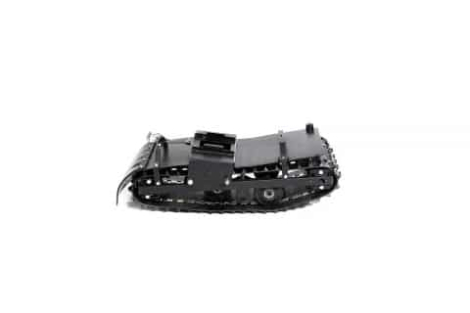

Track Snow

201907

Short track

Battery and cable

201899

Battery

Honda GX200 Engine

201630

Honda GX200 Engine

Snow+

Front frame

201629

Front frame

Mid frame

201893

Mid frame and seat frame

201820

SnowRollers

200870

Skis

Track Snow+

201909

Long Track

Battery and cable

201899

Battery

Honda GX200 Engine

201630

Honda GX200 Engine

Technical Information

Length x Width x Height

Snow 2100mm x 1000mm x 1100mm Snow+ 2500mm x 1000mm x 1100mm Combo 1800mm x 1260mm x 1100mm Combo+ 2300mm x 1260mm x 1100mm Wheeler 1700mm x 1180mm x 1100mm

Dryweight (no options)

Snow 109kg Snow+ 114kg Combo 114,6kg Combo+ 119,6kg Wheeler 128kg

Tire pressure

0,3 bar

Max load capacity (operator and load)

Snow 130kg Snow+ 130kg towable load max. 110kg

Intended use

Multi-purpose-vehicle

Operating angle (max)

Max 18 degrees

Operating temperature

+40°C – (-15°C)

Highest operating altitude from sea level

1500m /4900ft

Max speed, extra slow (10 teeth)Max speed, slow (12 teeth) Max speed, fast/standard (14 teeth)

12km/h(7mph)<15km/h(9mph) <20km/h(12mph)

Engine

Honda GX200, 4-stroke engine, 196cc

Power, kW (hv) / RPM

4,3 (5,8) / 3600

Fuel

E98, fuel tank 3,1l / 93 octane, Fuel tank 0,82 gal (US)

Fuel consumption (max)

<1l/h (1,7l/h max) / <0,26 gal (US)/h / (0,45 gal (US)/h max)

Transmission

centrifugal clutch and chain

Noise level

<70 dB(A)

Chassis

Front with two Snow Rollers or skis, rear with track mat. Track mat/Snow Rollers/skis can be replaced with tires.

Suspension

Front Snow Rollers/skis coil springs, track bogie

Motor oil

0,6l APISJ-SAE 10W-30 or 0W-40 (do not use when over 15°C/59°F)

Gearbox oil

0,5l APISJ-SAE 10W-30 or 0W-40 (do not use when over 15°C/59°F)
