Vaellan Combo

Combo

Introducing the Vaellan Combo, our all-season vehicle featuring wheels at the front and a short track at the rear. This configuration makes the Combo perfect for conquering challenging terrains year-round, offering excellent agility and stability. Whether navigating dense forests, muddy trails, or snowy landscapes, the Combo is the ideal choice.



Includes: Wheels (x 2), wheel hubs (x 2), front frame, middle and seat frame, battery, short track, and motor.

Vaellan Combo+

Combo+

Introducing the Vaellan Combo+, our advanced all-season vehicle featuring wheels at the front and a long track at the rear. This unique configuration excels in the toughest terrains year-round, delivering exceptional traction and stability. The Combo+ stands out with its superior ability to perform in all conditions.



Includes: Wheels (x 2), wheel hubs (x 2), front frame, middle and seat frame, battery, long track, and motor.

Vaellan Combo ja Combo+

Where Are They Used?



The Vaellan Combo and Combo+ models are the perfect choice when you need a lightweight all-season vehicle. These models perform exceptionally well in swampy and forested areas where terrain can be unpredictable.

Both Combo and Combo+ provide reliable stability, ensuring a smooth and confident driving experience. Designed to handle every season, these vehicles are your go-to option for year-round exploration and adventure.

Parts

Combo

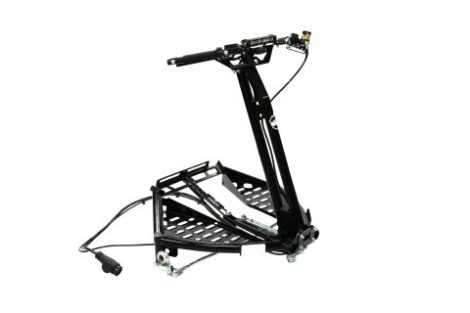

Front frame

201629

Front Frame

Mid frame

201893

Mid Frame

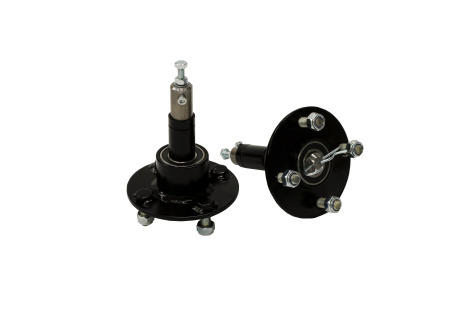

Wheels and Wheel Hubs

201470

Wheels

Wheels and Wheel Hubs

201469

Wheel hubs

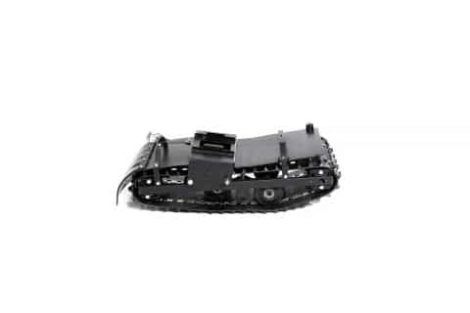

Track Snow

201907

Short Track

Battery and cable

201899

Battery

Honda GX200 Engine

201630

Honda GX200 Engine

Combo+

Front frame

201629

Front Frame

Mid frame

201893

Mid Frame

Wheels and Wheel Hubs

201470

Wheels

Wheels and Wheel Hubs

201469

Wheel hubs

Track Snow+

201909

Long Track

Battery and cable

201899

Battery

Honda GX200 Engine

201630

Honda GX200 Engine

Technical Information

Length x Width x Height

Snow 2100mm x 1000mm x 1100mm Snow+ 2500mm x 1000mm x 1100mm Combo 1800mm x 1260mm x 1100mm Combo+ 2300mm x 1260mm x 1100mm Wheeler 1700mm x 1180mm x 1100mm

Dryweight (no options)

Snow 109kg Snow+ 114kg Combo 114,6kg Combo+ 119,6kg Wheeler 128kg

Tire pressure

0,3 bar

Max load capacity (operator and load)

Snow 130kg Snow+ 130kg towable load max. 110kg

Intended use

Multi-purpose-vehicle

Operating angle (max)

Max 18 degrees

Operating temperature

+40°C – (-15°C)

Highest operating altitude from sea level

1500m /4900ft

Max speed, extra slow (10 teeth)Max speed, slow (12 teeth) Max speed, fast/standard (14 teeth)

12km/h(7mph)<15km/h(9mph) <20km/h(12mph)

Engine

Honda GX200, 4-stroke engine, 196cc

Power, kW (hv) / RPM

4,3 (5,8) / 3600

Fuel

E98, fuel tank 3,1l / 93 octane, Fuel tank 0,82 gal (US)

Fuel consumption (max)

<1l/h (1,7l/h max) / <0,26 gal (US)/h / (0,45 gal (US)/h max)

Transmission

centrifugal clutch and chain

Noise level

<70 dB(A)

Chassis

Front with two Snow Rollers or skis, rear with track mat. Track mat/Snow Rollers/skis can be replaced with tires.

Suspension

Front Snow Rollers/skis coil springs, track bogie

Motor oil

0,6l APISJ-SAE 10W-30 or 0W-40 (do not use when over 15°C/59°F)

Gearbox oil

0,5l APISJ-SAE 10W-30 or 0W-40 (do not use when over 15°C/59°F)
