Vaellan Wheeler

Where Is It Used?



The Vaellan Wheeler is the ultimate off-road adventure companion, built to withstand challenging conditions. Its durable and robust design ensures reliable performance across all terrains. The placement and size of the wheels make it easy to navigate tough landscapes, offering excellent stability. With the Wheeler, you can effortlessly traverse rocky terrain, dense forests, or even sand dunes. Its sturdy construction and superior traction make it the perfect choice for those who value reliability and performance in any environment.



Includes: Wheels (x 4), wheel hubs (x 4), front frame, middle and seat frame, battery, motor, rear axle, and gearbox.

parts

Wheeler

Front frame

201629

Front Frame

Mid frame

201893

Mid Frame

2 X 201470

Wheels

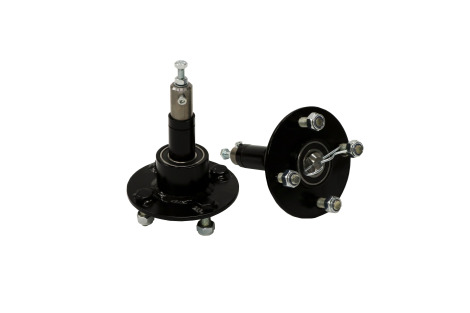

Wheels and Wheel Hubs

201469

Wheel Hubs

201912

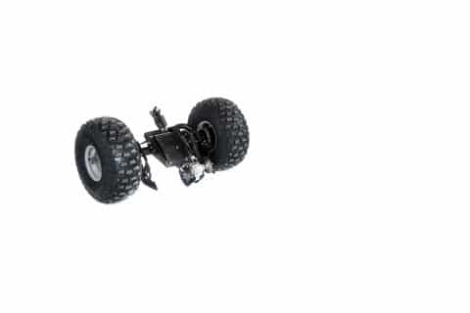

Back-Axle and Gearbox(not incl. wheels)

Battery and cable

201899

Battery

Honda GX200 Engine

201630

Honda GX200 Engine

Technical Information

Length x Width x Height

Snow 2100mm x 1000mm x 1100mm Snow+ 2500mm x 1000mm x 1100mm Combo 1800mm x 1260mm x 1100mm Combo+ 2300mm x 1260mm x 1100mm Wheeler 1700mm x 1180mm x 1100mm

Dryweight (no options)

Snow 109kg Snow+ 114kg Combo 114,6kg Combo+ 119,6kg Wheeler 128kg

Tire pressure

0,3 bar

Max load capacity (operator and load)

Snow 130kg Snow+ 130kg towable load max. 110kg

Intended use

Multi-purpose-vehicle

Operating angle (max)

Max 18 degrees

Operating temperature

+40°C – (-15°C)

Highest operating altitude from sea level

1500m /4900ft

Max speed, extra slow (10 teeth)Max speed, slow (12 teeth) Max speed, fast/standard (14 teeth)

12km/h(7mph)<15km/h(9mph) <20km/h(12mph)

Engine

Honda GX200, 4-stroke engine, 196cc

Power, kW (hv) / RPM

4,3 (5,8) / 3600

Fuel

E98, fuel tank 3,1l / 93 octane, Fuel tank 0,82 gal (US)

Fuel consumption (max)

<1l/h (1,7l/h max) / <0,26 gal (US)/h / (0,45 gal (US)/h max)

Transmission

centrifugal clutch and chain

Noise level

<70 dB(A)

Chassis

Front with two Snow Rollers or skis, rear with track mat. Track mat/Snow Rollers/skis can be replaced with tires.

Suspension

Front Snow Rollers/skis coil springs, track bogie

Motor oil

0,6l APISJ-SAE 10W-30 or 0W-40 (do not use when over 15°C/59°F)

Gearbox oil

0,5l APISJ-SAE 10W-30 or 0W-40 (do not use when over 15°C/59°F)
